Manufacturer of child seats - a flexible transport solution between the hall and loading
flexible transportation solution between the hall and loading
Manufacturer of child seats
Who was the customer?
Manufacturer of child seats - a flexible transport solution between the hall and loading
Customer challenges:
The client - one of the leading manufacturers of children's car seats - faced the challenge of efficiently handling multiple loading gates in an existing complex hall layout.
Biggest limitations:
- The hall was already built, and the 12-meter-wide conveyor corridor could not be built with stationary conveyors.
- Potrzeba elastycznego i mobilnego systemu, który zapewni ciągłość transportu od hali aż do wnętrza kontenera – nawet do 40 m od punktu startowego.
- Obsługa kilku bram w ciągu dnia – urządzenia musiały być łatwo przestawialne i kompatybilne z systemem sortowania.
A solution designed by Intralog
We have designed and implemented intelligent stretch roller conveyors (stretchers) that fully meet customer needs:
- Two stretch conveyors of 20 m each, with the possibility of combining up to a maximum of 40 m of conveying line length.
- Mechanically and electronically connected system - stretchers communicate with each other, synchronized operation (e.g., stopping one = stopping the other).
- The conveyors can be easily plugged in, out and connected to different gates - one solution supports multiple locations.
- Operation from gravity pallet racks, integrated with the master system - product + shipping label + automatic sorting.
- Universal sorting arrangement (3-4 trips) - the possibility of spreading out the stretchers for each trip.
This flexible and cost-effective approach allows the entire width of the transportation corridor to be preserved, without the need to interfere with infrastructure.
Results: What did the customer gain by implementing the solution with Intralog?
✅ Maintain full functionality of transportation roads (12 m wide) without development.
✅ Flexible use of one set of stretch conveyors for multiple gates - reducing the number of devices and costs.
✅ Up to 40 m of transport string - a solution for the most remote gates.
✅ Integration with the customer's internal system - complete tracking of goods and automatic labeling.
✅ High loading efficiency without costly self-driving solutions that would double the budget.
✅ An alternative to having to build 3× longer stationary lines.
Summary:
Instead of investing in costly, built-in or self-propelled transportation systems, the customer gained a smart, scalable and mobile solution that conserves space, simplifies logistics and provides high efficiency.
Looking for a flexible transportation solution in a ready-made hall or limited space?
Did you know that you can rent a conveyor belt (stretcher) from us for testing.
[Contact Us → CONTACT ]

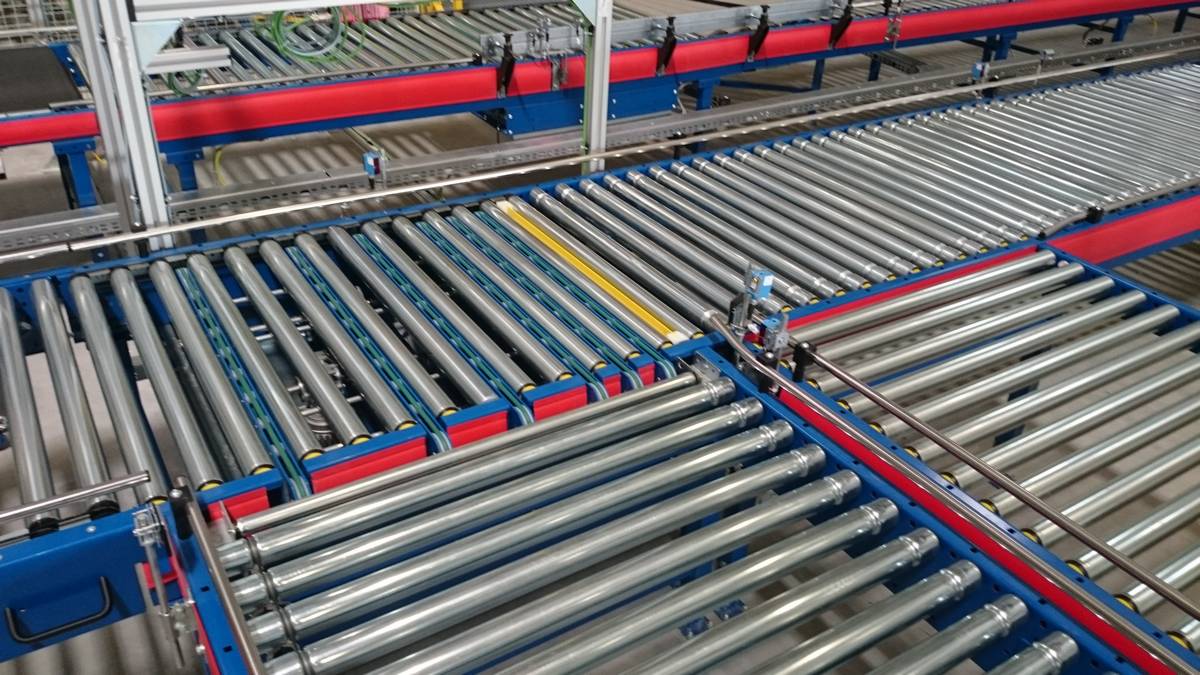

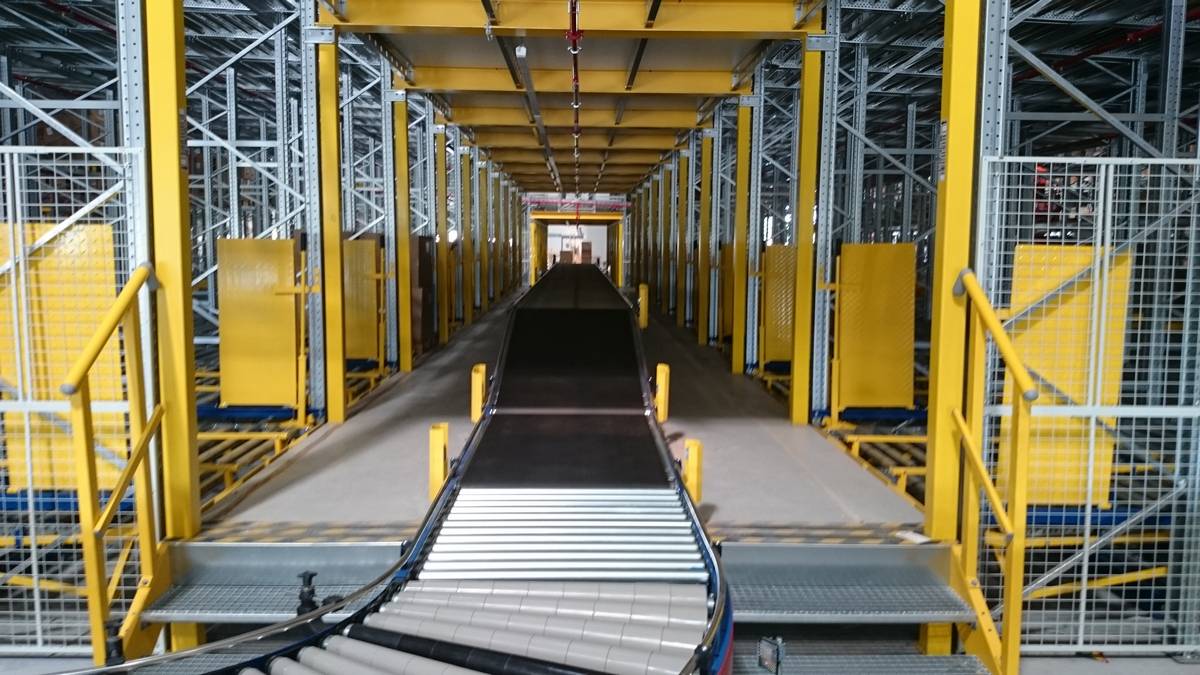

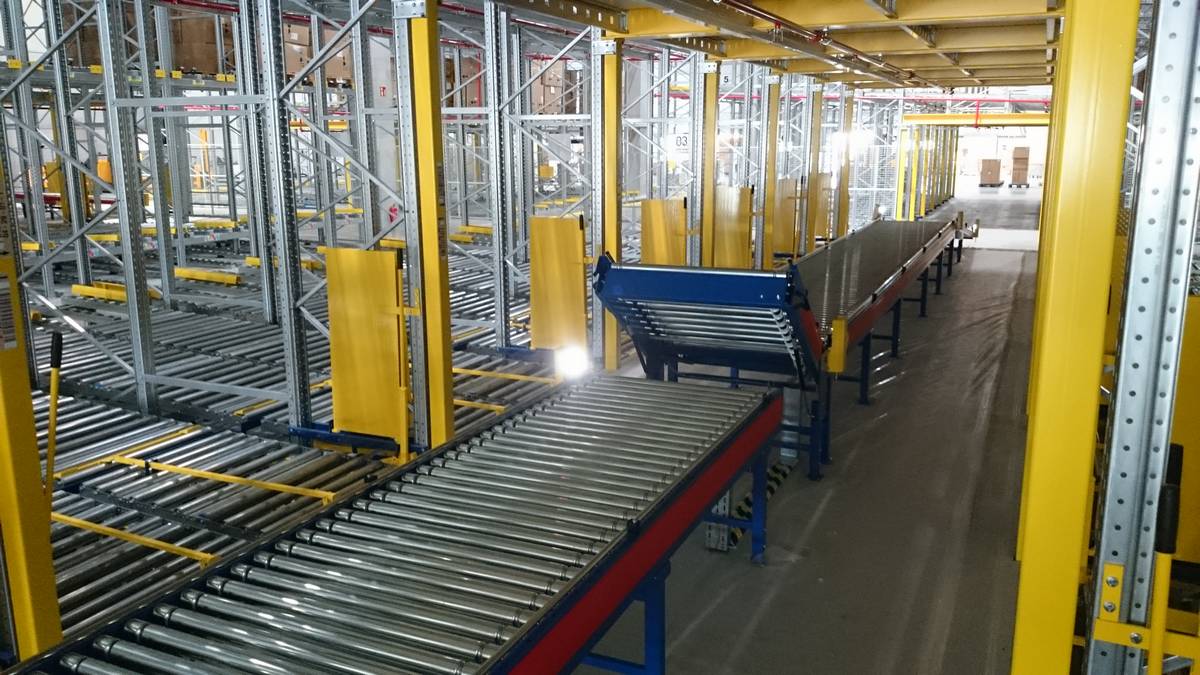

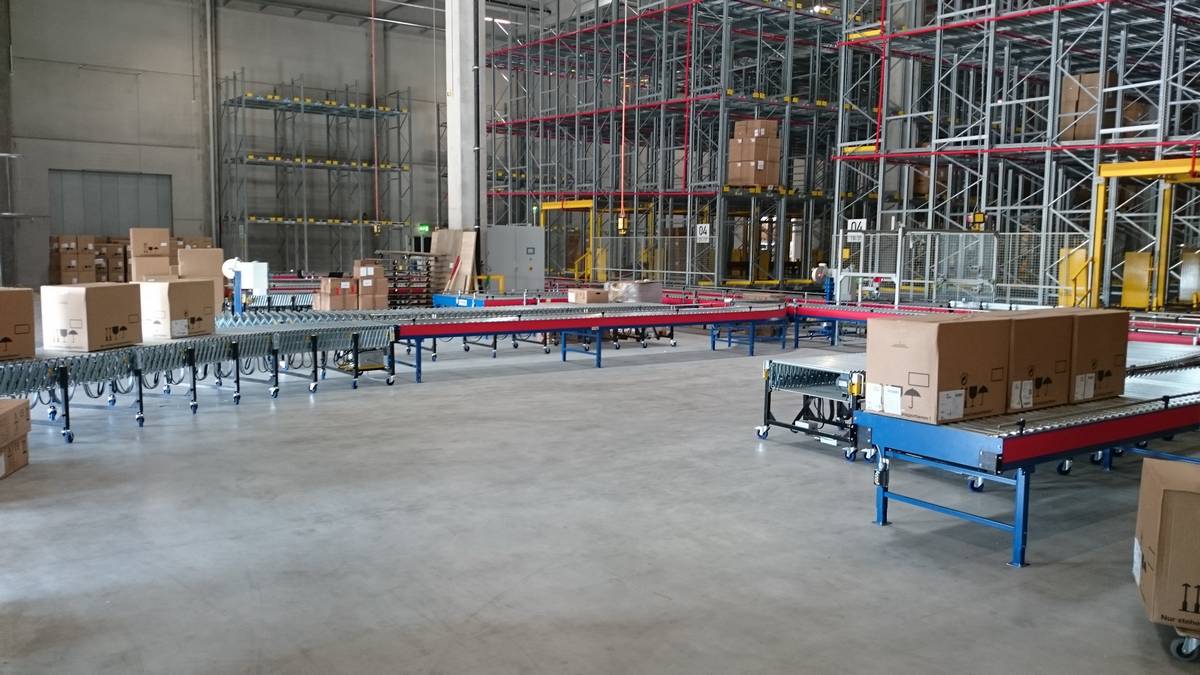

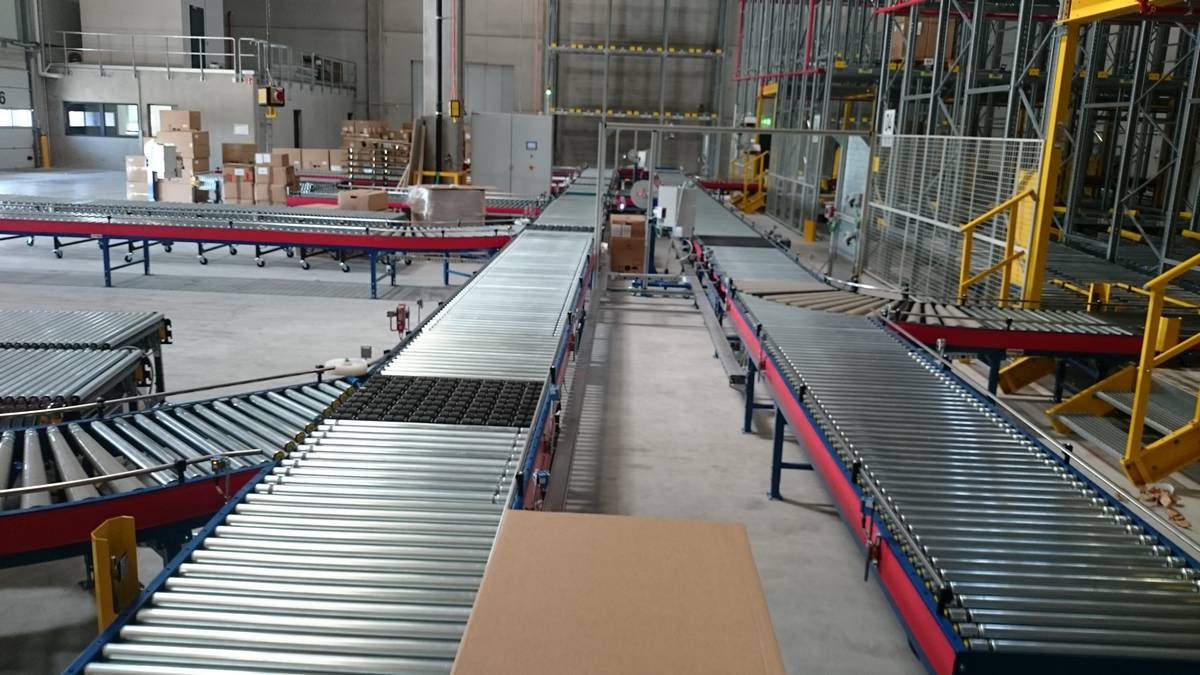

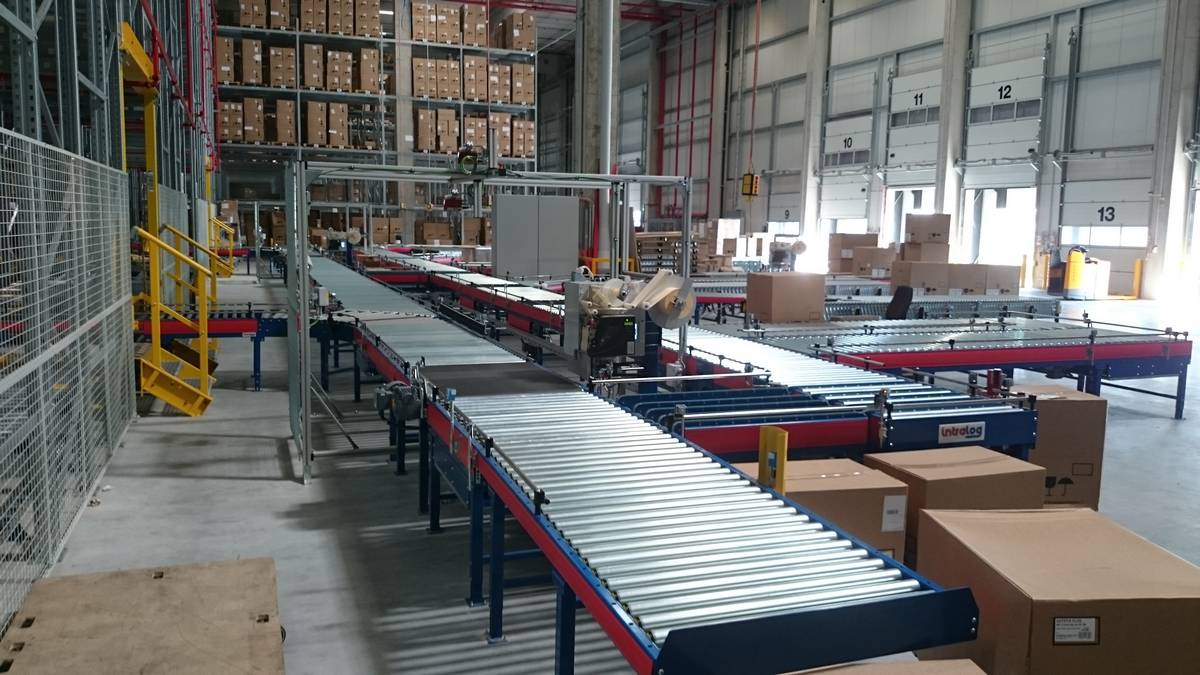

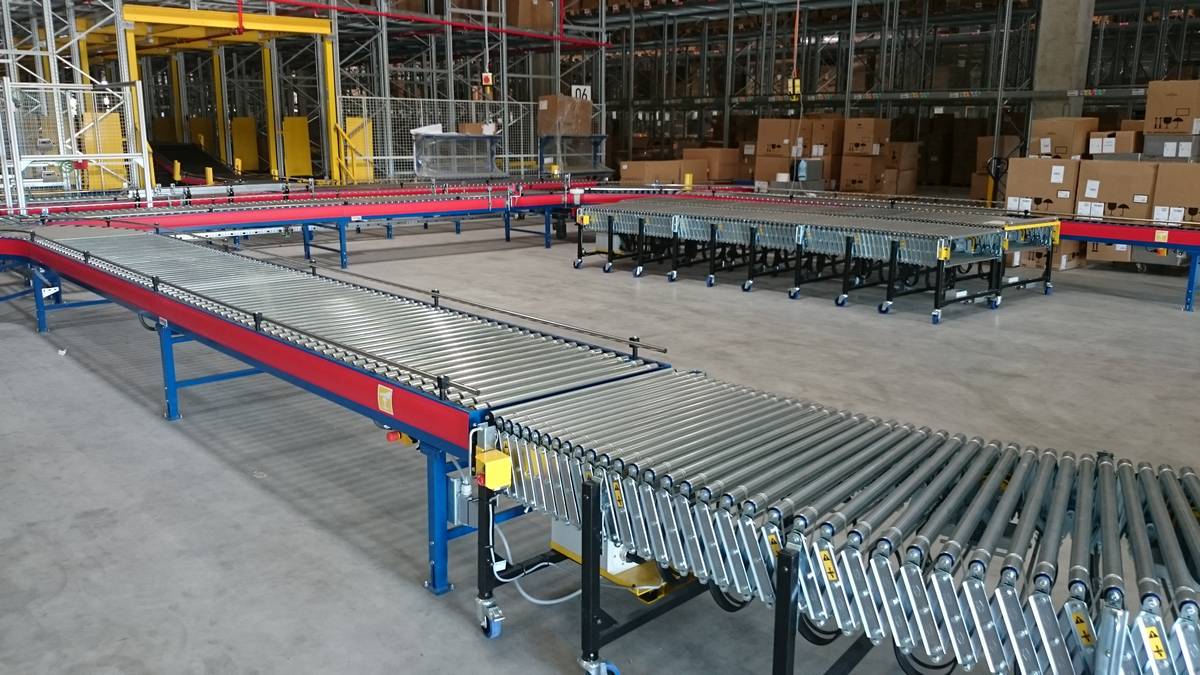

Photo Gallery:
